NDP-80BA featured image


Max. fluid temperature 82 ℃ | 179.6 F
Valve type Ball

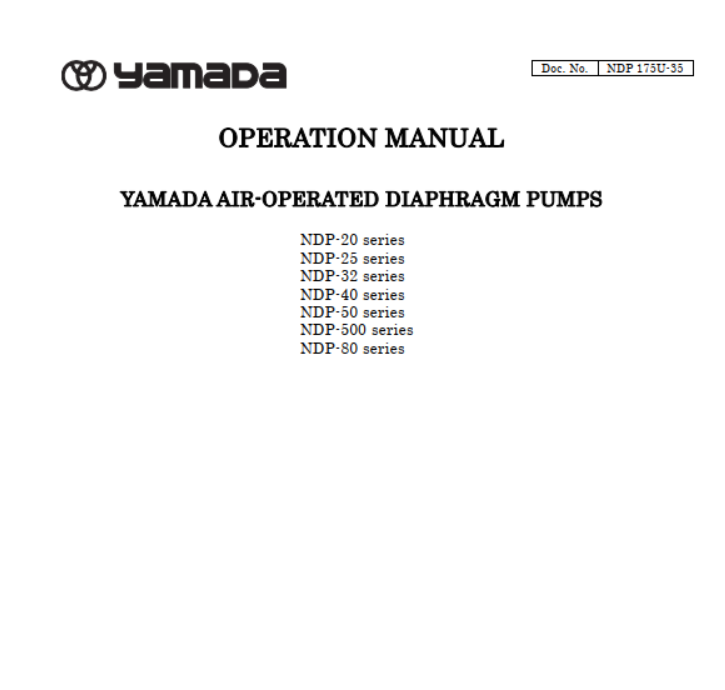

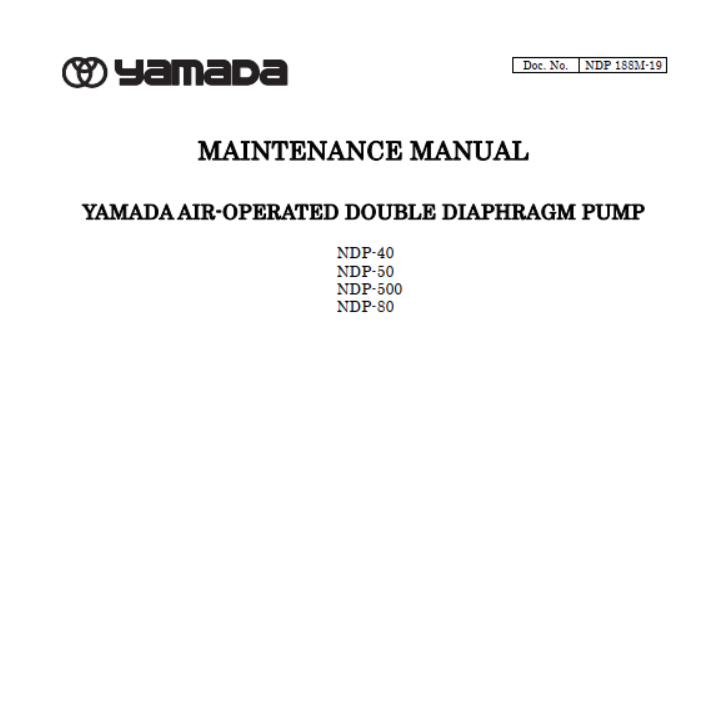

For more information, see our available downloads below or contact us!

Contact us

Specifications of NDP-80BA

Max. fluid
82 ℃ | 179.6 F

Valve type

Maximum capacity
840 liters/min (PTFE Diaphragm 640 L/min)

Port size
80 mm | 3 "

Max. fluid temperature82 ℃ | 179.6 F

Valve typeBall

Maximum capacity840 liters/min (PTFE Diaphragm 640 L/min)

Port size80 mm | 3 "

Air Supply Pressure2 - 7 bar (0.2 - 0.7 MPa)

Discharge Volume per Cycle8500 mL (PTFE Diaphragm 3800 mL / TU Diaphragm 5200 mL)

Maximum Cycles per MinuteRubber Diaphragm: 95 PTFE Diaphragm: 160

Maximum Size Solid10 mm or less

Maximum Dry Suction Lift5,0 m Rubber / 3,0 m PTFE Diaphragm

Body materialAluminum (ADC-12)

Diaphragm materialEPDM (E)
Hytrel® (H)
Neoprene (C)
Santoprene (S)
Viton (V)

Air motorStandard: Aluminum

Available kits (Diaphragm / Valve / Wet End Repair / Air Motor / Air Motor Seal)

  • NDP-80BAC-RC                       K80D-MC, K80V-MC, K80-MC, K80-AMF, K40/50/80-AMS
  • NDP-80BAN-RC                       K80D-MN, K80V-MN, K80-MN, K80-AMF, K40/50/80-AMS
  • NDP-80BAE-RC                        K80D-ME, K80V-ME, K80-ME, K80-AMF, K40/50/80-AMS
  • NDP-80BAH-RC                       K80D-MH, K80V-MH, K80-MH, K80-AMF, K40/50/80-AMS
  • NDP-80BAS-RC                        K80D-MS, K80V-MS, K80-MS, K80-AMF, K40/50/80-AMS
  • NDP-80BAV-RC                        K80D-MV, K80V-MV, K80-MV, K80-AMF, K40/50/80-AMS
  • NDP-80BAT-RC                        K80D-MT, K80V-AT, K80-MT, K80-AMF, K40/50/80-AMS
  • NDP-80BATU-RC                     K80D-TU, K80V-AT, K80-TU, K80-AMF, K40/50/80-AMS

Please note if you have a special pump or add-on, it’s possible you also need a special provided kit. Contact us for your options.
